KA107減速機重量：KA107減速機重量249公斤，KA107減速機與電機重量分別如下

KA107減速機與3KW電機重量284公斤，KA107減速機與4KW電機重量295公斤，KA107減速機與5.5KW電機重量309公斤，KA107減速機與7.5KW電機重量322公斤，KA107減速機與11KW電機重量364公斤，KA107減速機與15KW電機重量384公斤，KA107減速機與18.5KW電機重量421公斤，KA107減速機與22KW電機重量434公斤，KA107減速機與30KW電機重量502公斤，KA107減速機與37KW電機重量549公斤，KA107減速機與45KW電機重量584公斤。直角減速機

KA107減速機加油量：可加齒輪油

KA107減速機M3方式安裝加24L，KA107減速機M2方式安裝加20.5L，KA107減速機M1方式安裝加10L，KA107減速機M4方式安裝加32L，KA107減速機M5方式安裝加24L，KA107減速機M6方式安裝加24L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

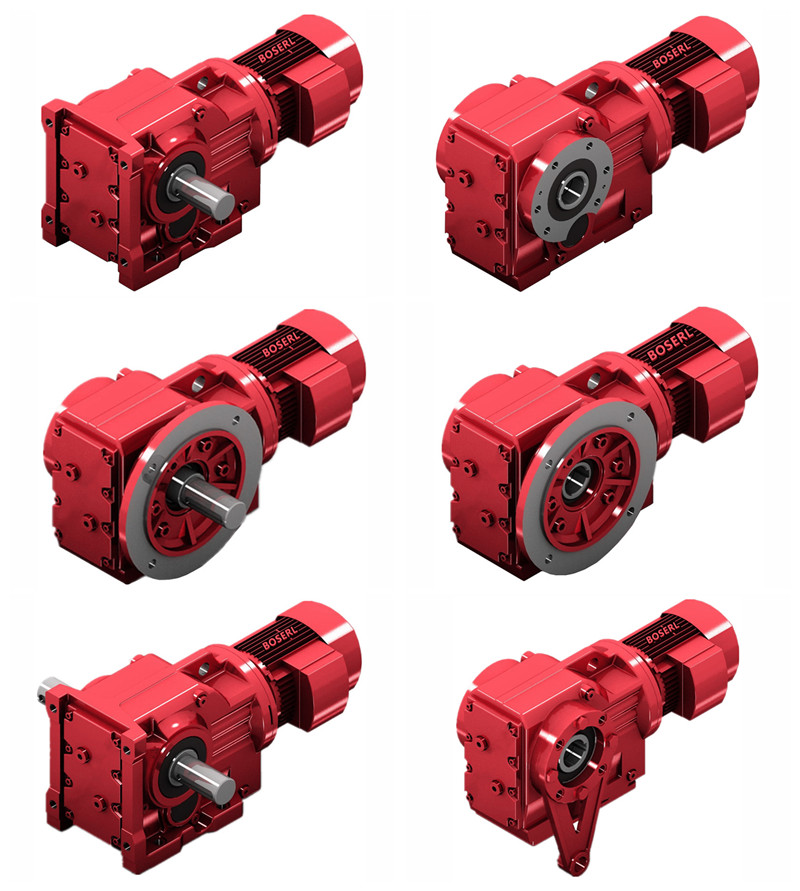

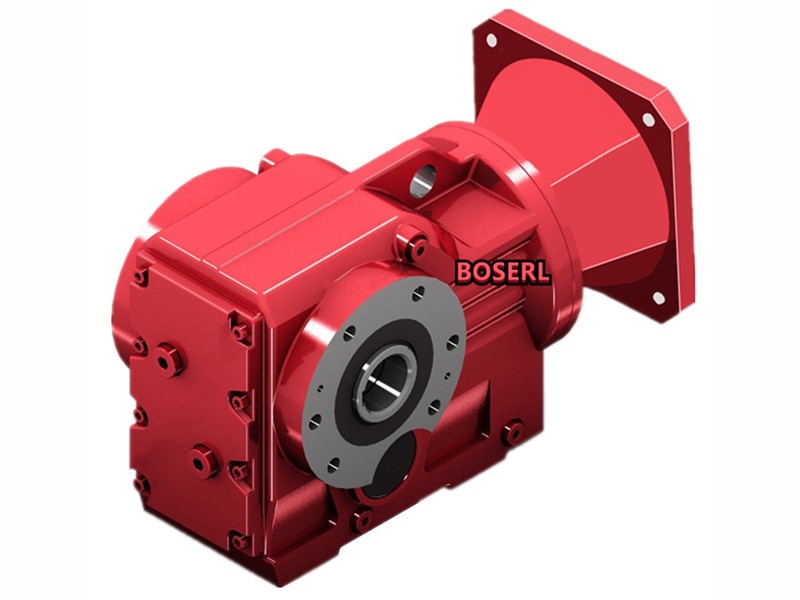

KA107減速機實物圖：圖一為KA107臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K107臥式方式安裝螺旋錐齒輪減速電機，圖三為KF107立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF107立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA107減速機型號表示方法：

KA107減速機型號結構KA107-B30KW-4P-減速比-安裝方式-接線盒位置。

KA107減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA107，K107，KF107，KAF107減速機機座號，N代表徑向負荷，HR手動釋放裝置，1，min代表輸出轉數，HF手動釋放裝置與自鎖功能。空心軸減速機

KA107減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KA107減速機參數：

KA107減速機減速比7.35比，8.69比，9.94比，11.73比，13.43比，14.64比，16.75比，19.74比，22.62比，26.32比，29比，31.28比，32.69比，37比，42.33比，49.9比，57.17比，66.52比，73.3比，82.61比，90.96比，100.75比，112.41比，121.46比，143.47比

KA107減速機輸出轉數9.8轉，12轉，14轉，15轉，17轉，19轉，21轉，24轉，28轉，33轉，38轉，43轉，45轉，48轉，53轉，62轉，71轉，84轉，96轉，104轉，119轉，141轉，161轉，190轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KA107減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA107與3KW，KA107與4KW，KA107與5.5KW，KA107與7.5KW，KA107與11KW，KA107與15KW，KA107與18.5KW，KA107與22KW，KA107與30KW，KA107與37KW，KA107與45KW。

KA107減速機輸出扭矩3600N.m，4070N.m，4190N.m，4300N.m，6800N.m，6890N.m，7050N.m，7200N.m，7360N.m，7840N.m，8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

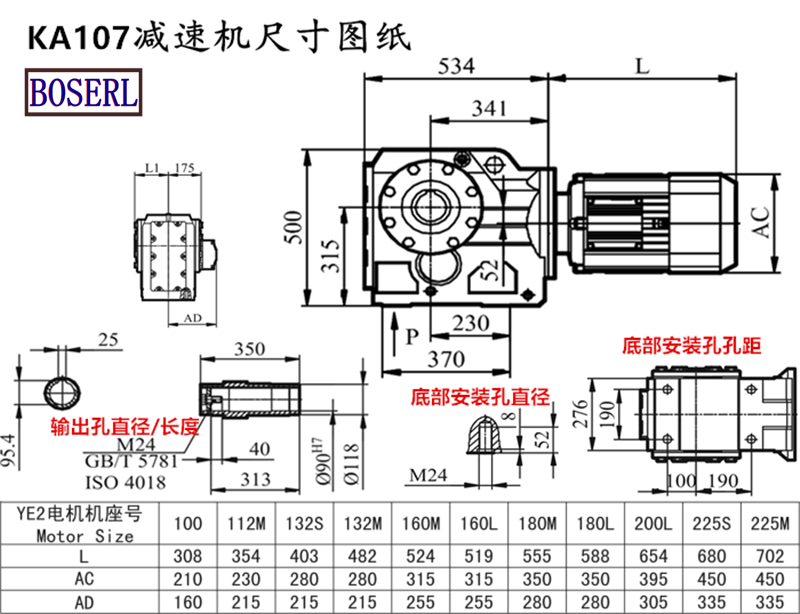

KA107減速機安裝尺寸：高500*寬340*長539

KA107減速機型號：KA107AQA80,KA107AQA100,KA107AQA115,KA107AQA140,KA107AQA160,KA107AQA190,KA107AQH80,KA107AQH100,KA107AQH115,KA107AQH140,KA107AQH160,KA107AQH190,JRTKA107-Y100M4,JRTKA107-Y112M4,JRTKA107-Y11KW,JRTKA107-Y132M4,JRTKA107-Y15KW,JRTKA107-Y160M4,JRTKA107-Y18.5KW,JRTKA107-Y180M4,JRTKA107-Y200M4,JRTKA107-Y225M4,JRTKA107-Y22KW,JRTKA107-Y30KW,JRTKA107-Y37KW,JRTKA107-Y3KW,JRTKA107-Y45KW,JRTKA107-Y4KW,JRTKA107-Y5.5KW,JRTKA107-Y7.5KW,JRTKA107-YEJ100M4,JRTKA107-YEJ112M4,JRTKA107-YEJ132M4,JRTKA107-YEJ160M4,JRTKA107-YEJ180M4,JRTKA107-YEJ200M4,JRTKA107-YEJ225M4,JRTKA107-YS100M4,JRTKA107-YS112M4,JRTKA107-YS132M4,JRTKA107-YS160M4,JRTKA107-YS180M4,JRTKA107-YS200M4,JRTKA107-YS225M4,JRTKA107-YVP100M4,JRTKA107-YVP112M4,JRTKA107-YVP132M4,JRTKA107-YVP160M4,JRTKA107-YVP180M4,JRTKA107-YVP200M4,JRTKA107-YVP225M4,JRTKA107-YVPEJ100M4,JRTKA107-YVPEJ112M4,JRTKA107-YVPEJ132M4,JRTKA107-YVPEJ160M4,JRTKA107-YVPEJ180M4,JRTKA107-YVPEJ200M4,JRTKA107-YVPEJ225M4,EWKA107-Y100M4,EWKA107-Y112M4,EWKA107-Y11KW,EWKA107-Y132M4,EWKA107-Y15KW,EWKA107-Y160M4,EWKA107-Y18.5KW,EWKA107-Y180M4,EWKA107-Y200M4,EWKA107-Y225M4,EWKA107-Y22KW,EWKA107-Y30KW,EWKA107-Y37KW,EWKA107-Y3KW,EWKA107-Y45KW,EWKA107-Y4KW,EWKA107-Y5.5KW,EWKA107-Y7.5KW,EWKA107-YEJ100M4,EWKA107-YEJ112M4,EWKA107-YEJ132M4,EWKA107-YEJ160M4,EWKA107-YEJ180M4,EWKA107-YEJ200M4,EWKA107-YEJ225M4,EWKA107-YS100M4,EWKA107-YS112M4,EWKA107-YS132M4,EWKA107-YS160M4,EWKA107-YS180M4,EWKA107-YS200M4,EWKA107-YS225M4,EWKA107-YVP100M4,EWKA107-YVP112M4,EWKA107-YVP132M4,EWKA107-YVP160M4,EWKA107-YVP180M4,EWKA107-YVP200M4,EWKA107-YVP225M4,EWKA107-YVPEJ100M4,EWKA107-YVPEJ112M4,EWKA107-YVPEJ132M4,EWKA107-YVPEJ160M4,EWKA107-YVPEJ180M4,EWKA107-YVPEJ200M4,EWKA107-YVPEJ225M4,SLKA107-Y100M4,SLKA107-Y112M4,SLKA107-Y11KW,SLKA107-Y132M4,SLKA107-Y15KW,SLKA107-Y160M4,SLKA107-Y18.5KW,SLKA107-Y180M4,SLKA107-Y200M4,SLKA107-Y225M4,SLKA107-Y22KW,SLKA107-Y30KW,SLKA107-Y37KW,SLKA107-Y3KW,SLKA107-Y45KW,SLKA107-Y4KW,SLKA107-Y5.5KW,SLKA107-Y7.5KW,SLKA107-YEJ100M4,SLKA107-YEJ112M4,SLKA107-YEJ132M4,SLKA107-YEJ160M4,SLKA107-YEJ180M4,SLKA107-YEJ200M4,SLKA107-YEJ225M4,SLKA107-YS100M4,SLKA107-YS112M4,SLKA107-YS132M4,SLKA107-YS160M4,SLKA107-YS180M4,SLKA107-YS200M4,SLKA107-YS225M4,SLKA107-YVP100M4,SLKA107-YVP112M4,SLKA107-YVP132M4,SLKA107-YVP160M4,SLKA107-YVP180M4,SLKA107-YVP200M4,SLKA107-YVP225M4,SLKA107-YVPEJ100M4,SLKA107-YVPEJ112M4,SLKA107-YVPEJ132M4,SLKA107-YVPEJ160M4,SLKA107-YVPEJ180M4,SLKA107-YVPEJ200M4,SLKA107-YVPEJ225M4,DSZKA107-Y100M4,DSZKA107-Y112M4,DSZKA107-Y11KW,DSZKA107-Y132M4,DSZKA107-Y15KW,DSZKA107-Y160M4,DSZKA107-Y18.5KW,DSZKA107-Y180M4,DSZKA107-Y200M4,DSZKA107-Y225M4,DSZKA107-Y22KW,DSZKA107-Y30KW,DSZKA107-Y37KW,DSZKA107-Y3KW,DSZKA107-Y45KW,DSZKA107-Y4KW,DSZKA107-Y5.5KW,DSZKA107-Y7.5KW,DSZKA107-YEJ100M4,DSZKA107-YEJ112M4,DSZKA107-YEJ132M4,DSZKA107-YEJ160M4,DSZKA107-YEJ180M4,DSZKA107-YEJ200M4,DSZKA107-YEJ225M4,DSZKA107-YS100M4,DSZKA107-YS112M4,DSZKA107-YS132M4,DSZKA107-YS160M4,DSZKA107-YS180M4,DSZKA107-YS200M4,DSZKA107-YS225M4,DSZKA107-YVP100M4,DSZKA107-YVP112M4,DSZKA107-YVP132M4,DSZKA107-YVP160M4,DSZKA107-YVP180M4,DSZKA107-YVP200M4,DSZKA107-YVP225M4,DSZKA107-YVPEJ100M4,DSZKA107-YVPEJ112M4,DSZKA107-YVPEJ132M4,DSZKA107-YVPEJ160M4,DSZKA107-YVPEJ180M4,DSZKA107-YVPEJ200M4,DSZKA107-YVPEJ225M4,BKA107-Y100M4,BKA107-Y112M4,BKA107-Y11KW,BKA107-Y132M4,BKA107-Y15KW,BKA107-Y160M4,BKA107-Y18.5KW,BKA107-Y180M4,BKA107-Y200M4,BKA107-Y225M4,BKA107-Y22KW,BKA107-Y30KW,BKA107-Y37KW,BKA107-Y3KW,BKA107-Y45KW,BKA107-Y4KW,BKA107-Y5.5KW,BKA107-Y7.5KW,BKA107-YEJ100M4,BKA107-YEJ112M4,BKA107-YEJ132M4,BKA107-YEJ160M4,BKA107-YEJ180M4,BKA107-YEJ200M4,BKA107-YEJ225M4,BKA107-YS100M4,BKA107-YS112M4,BKA107-YS132M4,BKA107-YS160M4,BKA107-YS180M4,BKA107-YS200M4,BKA107-YS225M4,BKA107-YVP100M4,BKA107-YVP112M4,BKA107-YVP132M4,BKA107-YVP160M4,BKA107-YVP180M4,BKA107-YVP200M4,BKA107-YVP225M4,BKA107-YVPEJ100M4,BKA107-YVPEJ112M4,BKA107-YVPEJ132M4,BKA107-YVPEJ160M4,BKA107-YVPEJ180M4,BKA107-YVPEJ200M4,BKA107-YVPEJ225M4,GKA107-Y100M4,GKA107-Y112M4,GKA107-Y11KW,GKA107-Y132M4,GKA107-Y15KW,GKA107-Y160M4,GKA107-Y18.5KW,GKA107-Y180M4,GKA107-Y200M4,GKA107-Y225M4,GKA107-Y22KW,GKA107-Y30KW,GKA107-Y37KW,GKA107-Y3KW,GKA107-Y45KW,GKA107-Y4KW,GKA107-Y5.5KW,GKA107-Y7.5KW,GKA107-YEJ100M4,GKA107-YEJ112M4,GKA107-YEJ132M4,GKA107-YEJ160M4,GKA107-YEJ180M4,GKA107-YEJ200M4,GKA107-YEJ225M4,GKA107-YS100M4,GKA107-YS112M4,GKA107-YS132M4,GKA107-YS160M4,GKA107-YS180M4,GKA107-YS200M4,GKA107-YS225M4,GKA107-YVP100M4,GKA107-YVP112M4,GKA107-YVP132M4,GKA107-YVP160M4,GKA107-YVP180M4,GKA107-YVP200M4,GKA107-YVP225M4,GKA107-YVPEJ100M4,GKA107-YVPEJ112M4,GKA107-YVPEJ132M4,GKA107-YVPEJ160M4,GKA107-YVPEJ180M4,GKA107-YVPEJ200M4,GKA107-YVPEJ225M4,KCA107-Y100M4,KCA107-Y112M4,KCA107-Y11KW,KCA107-Y132M4,KCA107-Y15KW,KCA107-Y160M4,KCA107-Y18.5KW,KCA107-Y180M4,KCA107-Y200M4,KCA107-Y225M4,KCA107-Y22KW,KCA107-Y30KW,KCA107-Y37KW,KCA107-Y3KW,KCA107-Y45KW,KCA107-Y4KW,KCA107-Y5.5KW,KCA107-Y7.5KW,KCA107-YEJ100M4,KCA107-YEJ112M4,KCA107-YEJ132M4,KCA107-YEJ160M4,KCA107-YEJ180M4,KCA107-YEJ200M4,KCA107-YEJ225M4,KCA107-YS100M4,KCA107-YS112M4,KCA107-YS132M4,KCA107-YS160M4,KCA107-YS180M4,KCA107-YS200M4,KCA107-YS225M4,KCA107-YVP100M4,KCA107-YVP112M4,KCA107-YVP132M4,KCA107-YVP160M4,KCA107-YVP180M4,KCA107-YVP200M4,KCA107-YVP225M4,KCA107-YVPEJ100M4,KCA107-YVPEJ112M4,KCA107-YVPEJ132M4,KCA107-YVPEJ160M4,KCA107-YVPEJ180M4,KCA107-YVPEJ200M4,KCA107-YVPEJ225M4,MTJA107-Y100M4,MTJA107-Y112M4,MTJA107-Y11KW,MTJA107-Y132M4,MTJA107-Y15KW,MTJA107-Y160M4,MTJA107-Y18.5KW,MTJA107-Y180M4,MTJA107-Y200M4,MTJA107-Y225M4,MTJA107-Y22KW,MTJA107-Y30KW,MTJA107-Y37KW,MTJA107-Y3KW,MTJA107-Y45KW,MTJA107-Y4KW,MTJA107-Y5.5KW,MTJA107-Y7.5KW,MTJA107-YEJ100M4,MTJA107-YEJ112M4,MTJA107-YEJ132M4,MTJA107-YEJ160M4,MTJA107-YEJ180M4,MTJA107-YEJ200M4,MTJA107-YEJ225M4,MTJA107-YS100M4,MTJA107-YS112M4,MTJA107-YS132M4,MTJA107-YS160M4,MTJA107-YS180M4,MTJA107-YS200M4,MTJA107-YS225M4,MTJA107-YVP100M4,MTJA107-YVP112M4,MTJA107-YVP132M4,MTJA107-YVP160M4,MTJA107-YVP180M4,MTJA107-YVP200M4,MTJA107-YVP225M4,MTJA107-YVPEJ100M4,MTJA107-YVPEJ112M4,MTJA107-YVPEJ132M4,MTJA107-YVPEJ160M4,MTJA107-YVPEJ180M4,MTJA107-YVPEJ200M4,MTJA107-YVPEJ225M4,WXKA107-WSS100M4,WXKA107-WSS112M4,WXKA107-WSS11KW,WXKA107-WSS132M4,WXKA107-WSS15KW,WXKA107-WSS160M4,WXKA107-WSS18.5KW,WXKA107-WSS180M4,WXKA107-WSS200M4,WXKA107-WSS225M4,WXKA107-WSS22KW,WXKA107-WSS30KW,WXKA107-WSS37KW,WXKA107-WSS3KW,WXKA107-WSS45KW,WXKA107-WSS4KW,WXKA107-WSS5.5KW,WXKA107-WSS7.5KW,WXKA107-WSSB100M4,WXKA107-WSSB112M4,WXKA107-WSSB132M4,WXKA107-WSSB160M4,WXKA107-WSSB180M4,WXKA107-WSSB200M4,WXKA107-WSSB225M4,WXKA107-WSSVP100M4,WXKA107-WSSVP112M4,WXKA107-WSSVP132M4,WXKA107-WSSVP160M4,WXKA107-WSSVP180M4,WXKA107-WSSVP200M4,WXKA107-WSSVP225M4,WXKA107-WSSVPB100M4,WXKA107-WSSVPB112M4,WXKA107-WSSVPB132M4,WXKA107-WSSVPB160M4,WXKA107-WSSVPB180M4,WXKA107-WSSVPB200M4,WXKA107-WSSVPB225M4。

KA107減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.sztc800.com/product/list-kaxiliejiansuji-cn.html
