R167減速機重量：R167減速機重量700公斤，R167減速機配電機重量分別如下

R167減速機配11KW電機重量815公斤,R167減速機配15KW電機重量835公斤,R167減速機配18.5KW電機重量872公斤,R167減速機配22KW電機重量885公斤,R167減速機配30KW電機重量953公斤,R167減速機配37KW電機重量1000公斤,R167減速機配45KW電機重量1035公斤,R167減速機配55KW電機重量1120公斤,R167減速機配75KW電機重量1260公斤,R167減速機配90KW電機重量1370公斤,R167減速機配110KW電機重量1620公斤,R167減速機配132KW電機重量1750公斤。

R167減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R167減速機M1安裝加27/70升，R167減速機M2安裝加82升，R167減速機M3安裝加78升，R167減速機M4安裝加88升，R167減速機M5安裝加66升，R167減速機M6安裝加69升。

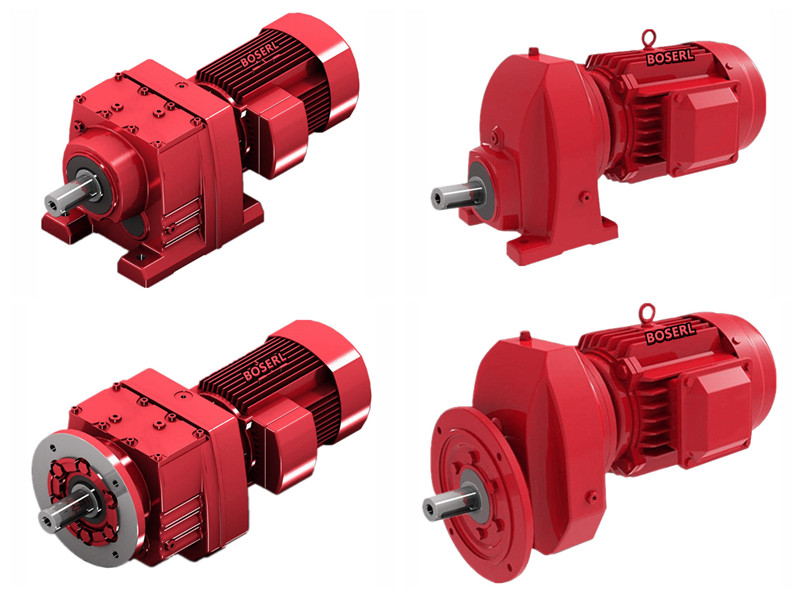

R167減速機實物圖：圖一為R167底腳安裝斜齒輪減速機，圖二RF167法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R167減速機型號表示方法：

R167減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R167減速機型號結構R167-B132KW-4P-減速比-安裝方式-接線盒位置。

R167減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R167減速機結構圖：

R167減速機參數：齒輪減速機

R167減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R167配11KW,R167配15KW,R167配18.5KW,R167配22KW,R167配30KW,R167配37KW,R167配45KW,R167配55KW,R167配75KW,R167配90KW,R167配110KW,R167配132KW。

R167減速機減速比10.24比,11.99比,14.48比,16.98比,19.03比,21.85比,23.71比,24.57比,27.96比,30.71比,34.41比,37.74比,39.92比,44.87比,46比,51.76比,58.65比,67.4比,73.7比,82.91比,93.19比,98比,107.49比,121.81比,139比,153.07比,186.93比,229.71比。

R167減速機輸出轉速6.1轉,7.5轉,9.1轉,10轉,11轉,13轉,15轉,17轉,19轉,21轉,24轉,27轉,30轉,31轉,35轉,37轉,41轉,46轉,50轉,57轉,59轉,64轉,74轉,82轉,97轉,117轉,137轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R167減速機負載扭矩7000N.m,9000N.m,10000N.m,13000N.m,14000N.m,15000N.m,16000N.m,17000N.m,18000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，同軸減速機型號加大,或者兩個減速機組合使用）

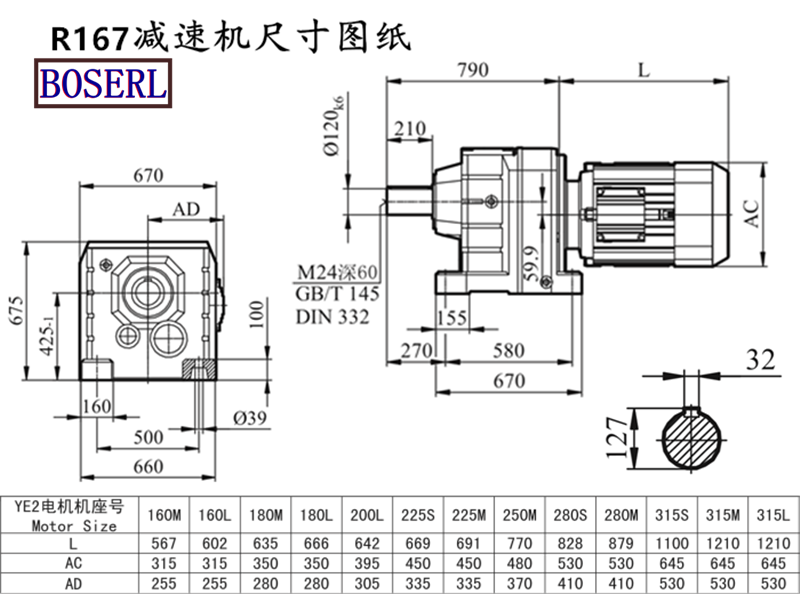

R167減速機尺寸圖紙：高675*寬660*長790（帶輸出軸）

R167減速機型號：R167AQA80,R167AQA100,R167AQA115,R167AQA140,R167AQA160,R167AQA190,R167AQH80,R167AQH100,R167AQH115,R167AQH140,R167AQH160,R167AQH190,JRTR167-Y110KW,JRTR167-Y11KW,JRTR167-Y132KW,JRTR167-Y15KW,JRTR167-Y160M4,JRTR167-Y18.5KW,JRTR167-Y180M4,JRTR167-Y200M4,JRTR167-Y225M4,JRTR167-Y22KW,JRTR167-Y250M4,JRTR167-Y280M4,JRTR167-Y30KW,JRTR167-Y315M4,JRTR167-Y37KW,JRTR167-Y45KW,JRTR167-Y55KW,JRTR167-Y75KW,JRTR167-Y90KW,JRTR167-YEJ160M4,JRTR167-YEJ180M4,JRTR167-YEJ200M4,JRTR167-YEJ225M4,JRTR167-YEJ250M4,JRTR167-YEJ280M4,JRTR167-YEJ315M4,JRTR167-YS160M4,JRTR167-YS180M4,JRTR167-YS200M4,JRTR167-YS225M4,JRTR167-YS250M4,JRTR167-YS280M4,JRTR167-YS315M4,JRTR167-YVP160M4,JRTR167-YVP180M4,JRTR167-YVP200M4,JRTR167-YVP225M4,JRTR167-YVP250M4,JRTR167-YVP280M4,JRTR167-YVP315M4,JRTR167-YVPEJ160M4,JRTR167-YVPEJ180M4,JRTR167-YVPEJ200M4,JRTR167-YVPEJ225M4,JRTR167-YVPEJ250M4,JRTR167-YVPEJ280M4,JRTR167-YVPEJ315M4,EWR167-Y110KW,EWR167-Y11KW,EWR167-Y132KW,EWR167-Y15KW,EWR167-Y160M4,EWR167-Y18.5KW,EWR167-Y180M4,EWR167-Y200M4,EWR167-Y225M4,EWR167-Y22KW,EWR167-Y250M4,EWR167-Y280M4,EWR167-Y30KW,EWR167-Y315M4,EWR167-Y37KW,EWR167-Y45KW,EWR167-Y55KW,EWR167-Y75KW,EWR167-Y90KW,EWR167-YEJ160M4,EWR167-YEJ180M4,EWR167-YEJ200M4,EWR167-YEJ225M4,EWR167-YEJ250M4,EWR167-YEJ280M4,EWR167-YEJ315M4,EWR167-YS160M4,EWR167-YS180M4,EWR167-YS200M4,EWR167-YS225M4,EWR167-YS250M4,EWR167-YS280M4,EWR167-YS315M4,EWR167-YVP160M4,EWR167-YVP180M4,EWR167-YVP200M4,EWR167-YVP225M4,EWR167-YVP250M4,EWR167-YVP280M4,EWR167-YVP315M4,EWR167-YVPEJ160M4,EWR167-YVPEJ180M4,EWR167-YVPEJ200M4,EWR167-YVPEJ225M4,EWR167-YVPEJ250M4,EWR167-YVPEJ280M4,EWR167-YVPEJ315M4,SLR167-Y110KW,SLR167-Y11KW,SLR167-Y132KW,SLR167-Y15KW,SLR167-Y160M4,SLR167-Y18.5KW,SLR167-Y180M4,SLR167-Y200M4,SLR167-Y225M4,SLR167-Y22KW,SLR167-Y250M4,SLR167-Y280M4,SLR167-Y30KW,SLR167-Y315M4,SLR167-Y37KW,SLR167-Y45KW,SLR167-Y55KW,SLR167-Y75KW,SLR167-Y90KW,SLR167-YEJ160M4,SLR167-YEJ180M4,SLR167-YEJ200M4,SLR167-YEJ225M4,SLR167-YEJ250M4,SLR167-YEJ280M4,SLR167-YEJ315M4,SLR167-YS160M4,SLR167-YS180M4,SLR167-YS200M4,SLR167-YS225M4,SLR167-YS250M4,SLR167-YS280M4,SLR167-YS315M4,SLR167-YVP160M4,SLR167-YVP180M4,SLR167-YVP200M4,SLR167-YVP225M4,SLR167-YVP250M4,SLR167-YVP280M4,SLR167-YVP315M4,SLR167-YVPEJ160M4,SLR167-YVPEJ180M4,SLR167-YVPEJ200M4,SLR167-YVPEJ225M4,SLR167-YVPEJ250M4,SLR167-YVPEJ280M4,SLR167-YVPEJ315M4,DSZR167-Y110KW,DSZR167-Y11KW,DSZR167-Y132KW,DSZR167-Y15KW,DSZR167-Y160M4,DSZR167-Y18.5KW,DSZR167-Y180M4,DSZR167-Y200M4,DSZR167-Y225M4,DSZR167-Y22KW,DSZR167-Y250M4,DSZR167-Y280M4,DSZR167-Y30KW,DSZR167-Y315M4,DSZR167-Y37KW,DSZR167-Y45KW,DSZR167-Y55KW,DSZR167-Y75KW,DSZR167-Y90KW,DSZR167-YEJ160M4,DSZR167-YEJ180M4,DSZR167-YEJ200M4,DSZR167-YEJ225M4,DSZR167-YEJ250M4,DSZR167-YEJ280M4,DSZR167-YEJ315M4,DSZR167-YS160M4,DSZR167-YS180M4,DSZR167-YS200M4,DSZR167-YS225M4,DSZR167-YS250M4,DSZR167-YS280M4,DSZR167-YS315M4,DSZR167-YVP160M4,DSZR167-YVP180M4,DSZR167-YVP200M4,DSZR167-YVP225M4,DSZR167-YVP250M4,DSZR167-YVP280M4,DSZR167-YVP315M4,DSZR167-YVPEJ160M4,DSZR167-YVPEJ180M4,DSZR167-YVPEJ200M4,DSZR167-YVPEJ225M4,DSZR167-YVPEJ250M4,DSZR167-YVPEJ280M4,DSZR167-YVPEJ315M4,BR167-Y110KW,BR167-Y11KW,BR167-Y132KW,BR167-Y15KW,BR167-Y160M4,BR167-Y18.5KW,BR167-Y180M4,BR167-Y200M4,BR167-Y225M4,BR167-Y22KW,BR167-Y250M4,BR167-Y280M4,BR167-Y30KW,BR167-Y315M4,BR167-Y37KW,BR167-Y45KW,BR167-Y55KW,BR167-Y75KW,BR167-Y90KW,BR167-YEJ160M4,BR167-YEJ180M4,BR167-YEJ200M4,BR167-YEJ225M4,BR167-YEJ250M4,BR167-YEJ280M4,BR167-YEJ315M4,BR167-YS160M4,BR167-YS180M4,BR167-YS200M4,BR167-YS225M4,BR167-YS250M4,BR167-YS280M4,BR167-YS315M4,BR167-YVP160M4,BR167-YVP180M4,BR167-YVP200M4,BR167-YVP225M4,BR167-YVP250M4,BR167-YVP280M4,BR167-YVP315M4,BR167-YVPEJ160M4,BR167-YVPEJ180M4,BR167-YVPEJ200M4,BR167-YVPEJ225M4,BR167-YVPEJ250M4,BR167-YVPEJ280M4,BR167-YVPEJ315M4,GR167-Y110KW,GR167-Y11KW,GR167-Y132KW,GR167-Y15KW,GR167-Y160M4,GR167-Y18.5KW,GR167-Y180M4,GR167-Y200M4,GR167-Y225M4,GR167-Y22KW,GR167-Y250M4,GR167-Y280M4,GR167-Y30KW,GR167-Y315M4,GR167-Y37KW,GR167-Y45KW,GR167-Y55KW,GR167-Y75KW,GR167-Y90KW,GR167-YEJ160M4,GR167-YEJ180M4,GR167-YEJ200M4,GR167-YEJ225M4,GR167-YEJ250M4,GR167-YEJ280M4,GR167-YEJ315M4,GR167-YS160M4,GR167-YS180M4,GR167-YS200M4,GR167-YS225M4,GR167-YS250M4,GR167-YS280M4,GR167-YS315M4,GR167-YVP160M4,GR167-YVP180M4,GR167-YVP200M4,GR167-YVP225M4,GR167-YVP250M4,GR167-YVP280M4,GR167-YVP315M4,GR167-YVPEJ160M4,GR167-YVPEJ180M4,GR167-YVPEJ200M4,GR167-YVPEJ225M4,GR167-YVPEJ250M4,GR167-YVPEJ280M4,GR167-YVPEJ315M4,RC167-Y110KW,RC167-Y11KW,RC167-Y132KW,RC167-Y15KW,RC167-Y160M4,RC167-Y18.5KW,RC167-Y180M4,RC167-Y200M4,RC167-Y225M4,RC167-Y22KW,RC167-Y250M4,RC167-Y280M4,RC167-Y30KW,RC167-Y315M4,RC167-Y37KW,RC167-Y45KW,RC167-Y55KW,RC167-Y75KW,RC167-Y90KW,RC167-YEJ160M4,RC167-YEJ180M4,RC167-YEJ200M4,RC167-YEJ225M4,RC167-YEJ250M4,RC167-YEJ280M4,RC167-YEJ315M4,RC167-YS160M4,RC167-YS180M4,RC167-YS200M4,RC167-YS225M4,RC167-YS250M4,RC167-YS280M4,RC167-YS315M4,RC167-YVP160M4,RC167-YVP180M4,RC167-YVP200M4,RC167-YVP225M4,RC167-YVP250M4,RC167-YVP280M4,RC167-YVP315M4,RC167-YVPEJ160M4,RC167-YVPEJ180M4,RC167-YVPEJ200M4,RC167-YVPEJ225M4,RC167-YVPEJ250M4,RC167-YVPEJ280M4,RC167-YVPEJ315M4,MTD167-Y110KW,MTD167-Y11KW,MTD167-Y132KW,MTD167-Y15KW,MTD167-Y160M4,MTD167-Y18.5KW,MTD167-Y180M4,MTD167-Y200M4,MTD167-Y225M4,MTD167-Y22KW,MTD167-Y250M4,MTD167-Y280M4,MTD167-Y30KW,MTD167-Y315M4,MTD167-Y37KW,MTD167-Y45KW,MTD167-Y55KW,MTD167-Y75KW,MTD167-Y90KW,MTD167-YEJ160M4,MTD167-YEJ180M4,MTD167-YEJ200M4,MTD167-YEJ225M4,MTD167-YEJ250M4,MTD167-YEJ280M4,MTD167-YEJ315M4,MTD167-YS160M4,MTD167-YS180M4,MTD167-YS200M4,MTD167-YS225M4,MTD167-YS250M4,MTD167-YS280M4,MTD167-YS315M4,MTD167-YVP160M4,MTD167-YVP180M4,MTD167-YVP200M4,MTD167-YVP225M4,MTD167-YVP250M4,MTD167-YVP280M4,MTD167-YVP315M4,MTD167-YVPEJ160M4,MTD167-YVPEJ180M4,MTD167-YVPEJ200M4,MTD167-YVPEJ225M4,MTD167-YVPEJ250M4,MTD167-YVPEJ280M4,MTD167-YVPEJ315M4,WXR167-WSS110KW,WXR167-WSS11KW,WXR167-WSS132KW,WXR167-WSS15KW,WXR167-WSS160M4,WXR167-WSS18.5KW,WXR167-WSS180M4,WXR167-WSS200M4,WXR167-WSS225M4,WXR167-WSS22KW,WXR167-WSS250M4,WXR167-WSS280M4,WXR167-WSS30KW,WXR167-WSS315M4,WXR167-WSS37KW,WXR167-WSS45KW,WXR167-WSS55KW,WXR167-WSS75KW,WXR167-WSS90KW,WXR167-WSSB160M4,WXR167-WSSB180M4,WXR167-WSSB200M4,WXR167-WSSB225M4,WXR167-WSSB250M4,WXR167-WSSB280M4,WXR167-WSSB315M4,WXR167-WSSVP160M4,WXR167-WSSVP180M4,WXR167-WSSVP200M4,WXR167-WSSVP225M4,WXR167-WSSVP250M4,WXR167-WSSVP280M4,WXR167-WSSVP315M4,WXR167-WSSVPB160M4,WXR167-WSSVPB180M4,WXR167-WSSVPB200M4,WXR167-WSSVPB225M4,WXR167-WSSVPB250M4,WXR167-WSSVPB280M4,WXR167-WSSVPB315M4。R系列減速機
